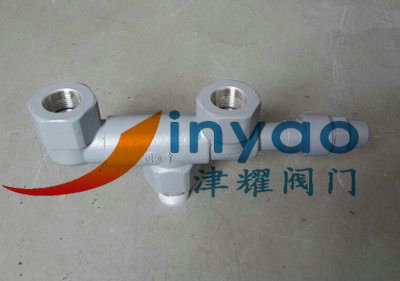

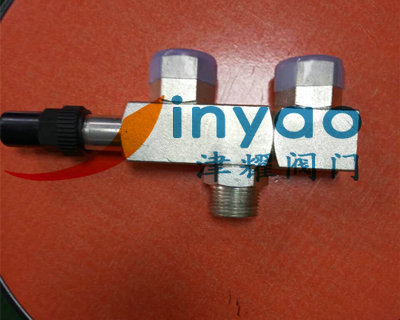

冷冻用三通截止阀23J14H-40冷冻机三通阀
三通截止阀23J14H-40参数 Specification
|
型号 Type |
23J14H-40 |
|
公称压力 Nominal pressure |
4.0MPa |
|
强度试验压力 Shell test pressure |
6.0MPa |
|
密封试验(水) Seal test (water) |
4.4MPa |
|
密封试验(气) Seal test (gas) |
0.6MPa |
|
适用温度 Suitable temperature |
≤425°C |
|
适用介质 Suitable medium |
制冷剂、油、水等 |
三通截止阀23J14H-40材料 Main parts material
|
序号 NO. |
零件名称 Part name |
材料 Materials |
|
1 |
阀体 Body |
WCB/LCB |
|
3 |
阀座 Seat |
WCB/LCB |
|
4 |
填料 Packing |
石墨 |
|
5 |
阀杆 Stem |
20Cr13/12Cr13 |
三通截止阀23J14H-40尺寸 Connecting dimension
|
k in |
mm |
||||
|
A |
B |
C |
D |
E |
|
|
1/4-FNPT |
80 |
52 |
70 |
34 |
132.5 |
|
3/8-FNPT |
80 |
52 |
70 |
34 |
132.5 |
|
1/2-FNPT |
92 |
60.5 |
86 |
44.5 |
152.5 |
|
3/4-FNPT |
|||||
|
1-FNPT |
150 |
95 |
102 |
51 |
203 |
|
1'/4-FNPT |
|||||
